Description
Heavy-Duty Bariatric Bed with Expandable Width and 1,050 lb. Safe Working Load

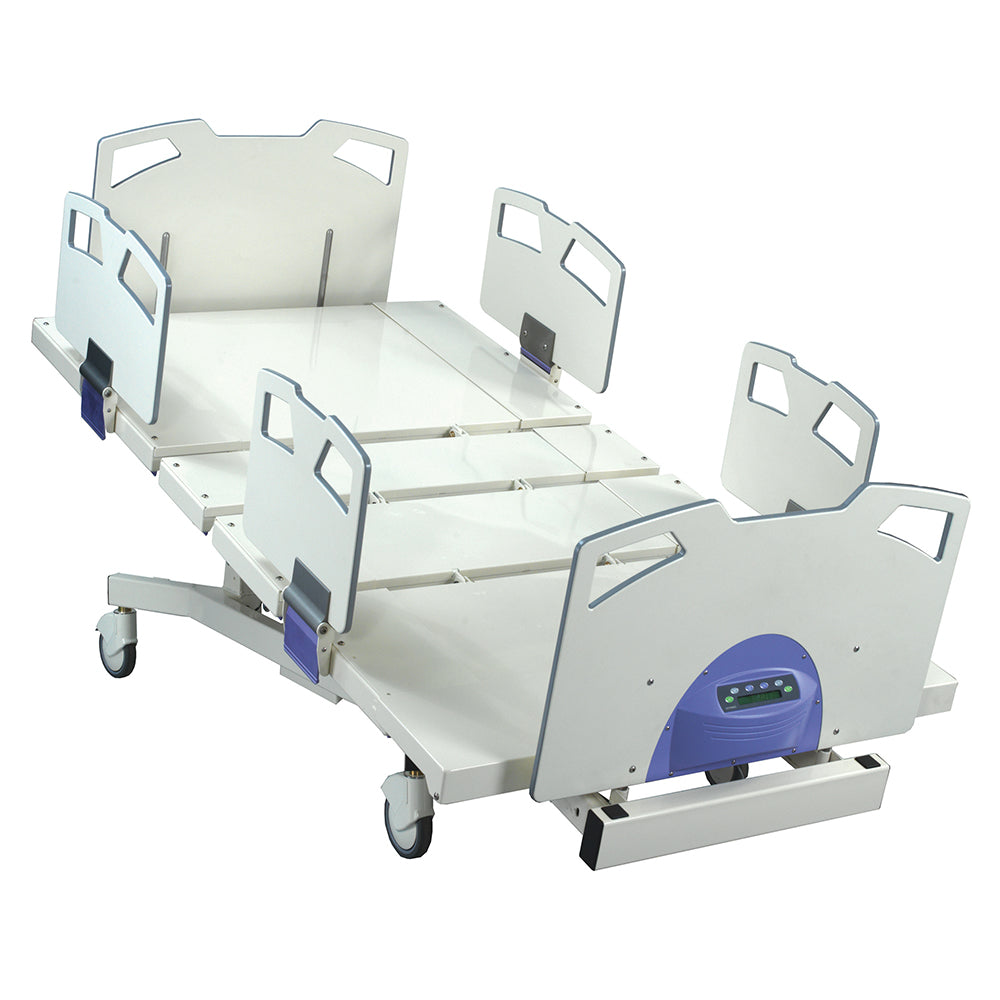

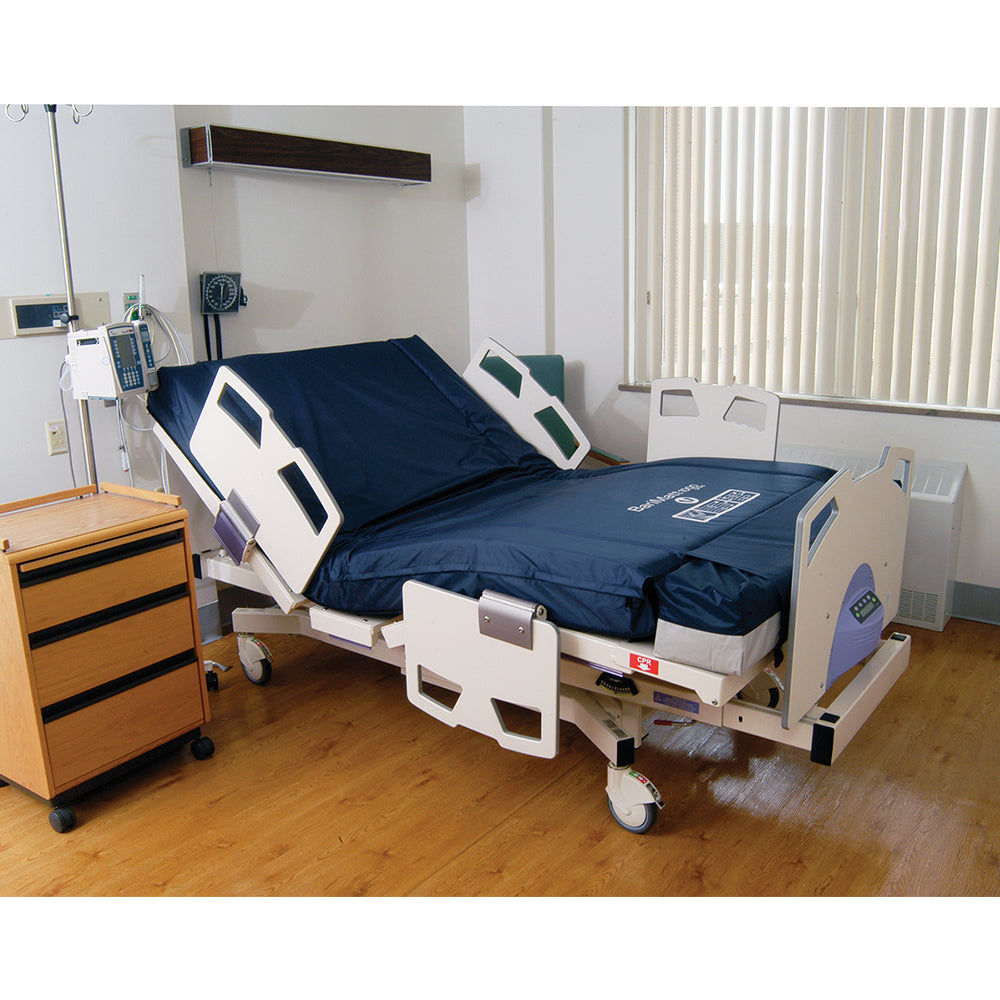

The Stryker/Joerns Bari 10A Bariatric Bed (Model 2230) is a certified refurbished hospital bed engineered to provide dignified, safe, and reliable bariatric care. With a true 1,050 lb. safe working load, expandable width, integrated scale, and enhanced maneuverability via a centrally located 5th wheel, it delivers the strength of a bariatric solution with the comfort and aesthetic of a standard hospital bed.
Why Choose the Stryker Bari 10A?
- Certified Refurbished for reliable performance and cost savings.
- True 1,050 lb. safe working load for bariatric patient care.
- Expandable width: mattress platform expands from 36” to 48” with color-coded levers.
- Centrally located 5th wheel improves maneuverability and steering.
- Integrated scale system provides accurate weight monitoring up to 1,050 lbs.

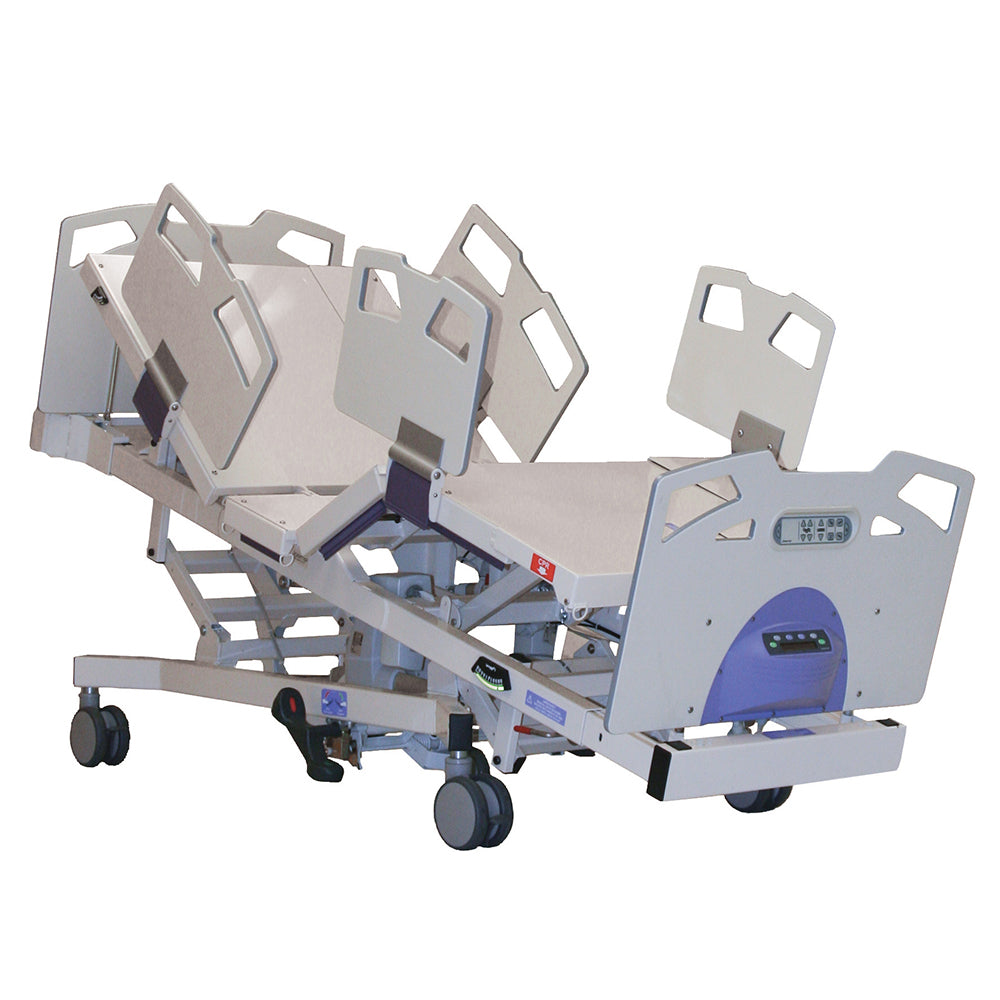

- Fully articulated mattress platform for multiple therapeutic positions.
- Maintains a dignified, hospital-grade aesthetic while supporting bariatric needs.
Key Benefits
Enhanced Patient Safety and Dignity
- Supports patients up to 1,050 lbs. securely and comfortably.
- Expandable mattress platform accommodates larger patients without the need for multiple bed types.
- Optional bariatric patient helper promotes independence and dignity during repositioning.
- Low-profile siderails and one-handed release ensure safe, smooth transfers.
Improved Caregiver Efficiency and Maneuverability

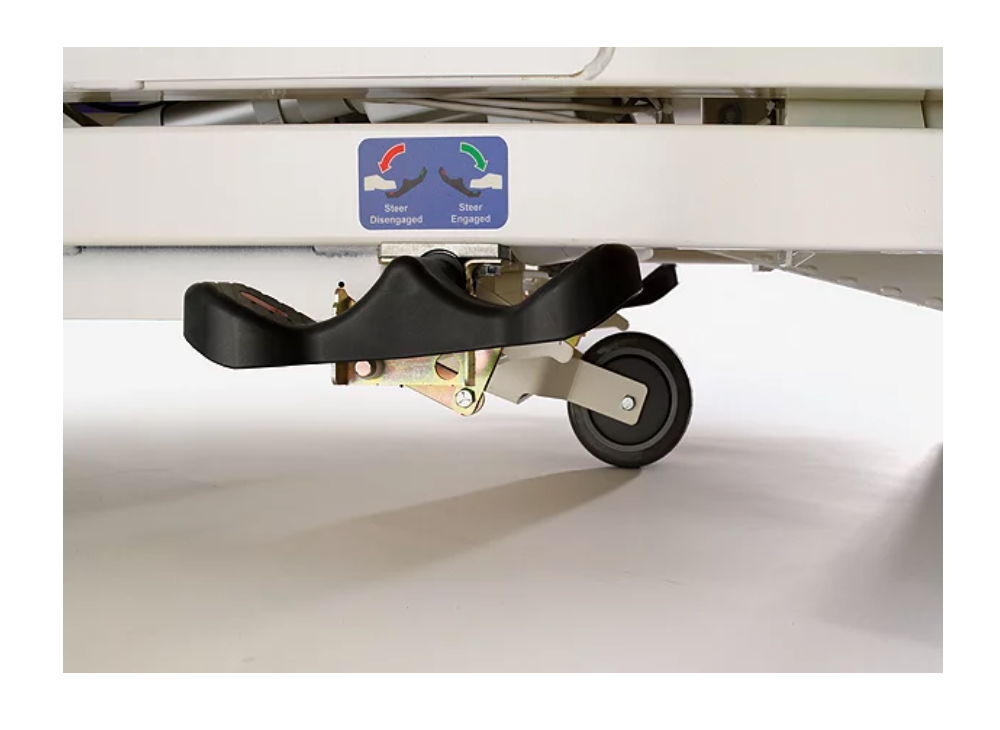

- 5th wheel design provides a central pivot point for tighter turns and easier steering in clinical environments.
- Integrated scale system allows caregivers to monitor weight changes directly from the bed.
- Folding siderails on both head and foot sections simplify patient access and streamline workflows.
Versatile Positioning and Control
- Fully articulated platform supports independent back, knee, and leg adjustments.
- Trendelenburg and Reverse Trendelenburg positioning for therapeutic versatility.
- Foot-end controls with lockouts and pendant control ensure caregivers maintain safe command over bed functions.
- Emergency manual release keeps patient care uninterrupted.
Key Features
- 1,050 lb. safe working load
- Expandable mattress deck: 36” to 48” width, 80” to 88” length
- Centrally located 5th wheel for enhanced maneuverability
- Integrated scale system with ±3% accuracy
- Fully articulated support: backrest, knee gatch, Trendelenburg, Reverse Trendelenburg
- Height range: 18.75” low to 33.75” high
- Foot-end and pendant controls with patient lockout
- One-handed siderail release for quick adjustments
- Welded tubular steel frame with pan-style deck
- Quiet DC motors for smooth operation
- Bed angle indicators, head-of-bed indicator, IV traction adapters, Foley bag hooks
- 5” casters and wide stable base for mobility and safety
Product Specifications
| Model Number | 2230 |
| Overall Length | Minimum: 90” (228.6 cm) / Maximum: 98” (248.9 cm) |
| Overall Width | Minimum: 39” (99.1 cm) / Maximum: 52” (132.1 cm) |
| Safe Working Load | 1,050 lb. (476.3 kg) |
| Bed Frame Weight | 700 lb. (317.5 kg) |
| Height Range (to litter top) | Low: 18.7” (47.5 cm) / High: 33.7” (85.6 cm) |
| Litter Positioning | Backrest: 65° / Knee: 35° / Knee to Leg: 45° / Trendelenburg: 14.5° / Reverse Trendelenburg: 15.3° |
| Patient Surface | Minimum: 36” x 80” (91.4 x 203.2 cm) / Maximum: 48” x 88” (121.9 x 223.5 cm) |
| Caster Diameter | 5” (12.7 cm) |
| Electronics | 115 VAC / 5.8 amps / 60 Hz |
Product Information
- Warranty: 1-Year Parts and Labor
- Specifications Sheet
- User Manual
- Parts List
- Brochure
